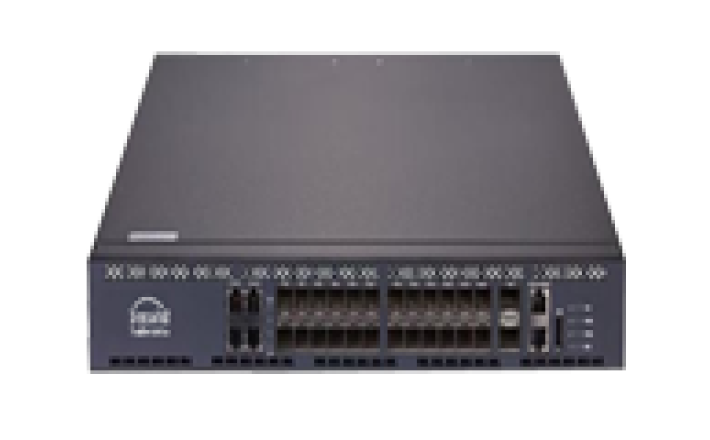

Ethernet routing switch 14 port 10G + 2 port 40G

Giá:

380.000.000đ -0%

Ethernet routing switch with 24 -port 10G optical +2 port 40G optical (1 Console port, a band management Gigabit electrical interface, a USB2.0 port, 24 Gigabit SFP + optical interfaces, two 40G QSFP + optical ports (each 40G port can expand to four 10G ports used); two power supply slots, at least one optional; five fan slot; 1U height, 19-inch rack mount)

Lượt xem: 1003

Thông tin chi tiết
Hình ảnh

PRODUCT SPECIFICATIONS

Switch Capacity: 640Gbps
Packet Forwarding Rate: 480Mpps
Power Slots: 2
Fan Slots: 5
Ports: 24 10G SFP+ ports and 2 40G QSFP+ ports or 32 10G ports
Data Center Characteristics:
- PVSS
- TRILL/SPB large layer-2 technique
- FCoE technique
- SDN
MAC Switching Capacity:
- Static Configuration And Dynamically Learning Of MAC Address
- Check And Delete MAC Address
- MAC Address Aging Time
- Limit On MAC Address Learning Number
- MAC Address Filtering Function
- Black-Hole MAC Items
VLAN:
- 4K VLAN entries
- GVRP
- 1:1 and N:1 VLAN Mapping
- Basic Qinq And Selective Qinq
- Private VLAN
STP:
- 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)
- BPDU protection, root protection and ring protection
Multicast:
- IGMP v1/v2/v3
- IGMP Snooping
- IGMP Fast Leave
- Multicast Group Policy And Multicast Number Limit
- Multicast Traffic Cross Vlan Duplication
- PIM-SM and PIM-DM
IPv4:
- Static Routing, RIP V1/V2, OSPF And BGP
- Policy Routing
- Load Balance Through Equal-Cost Routing
- BFD For OSPF And BGP
IPv6:
- ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
- IPv6 Neighbor Discovery
- Path MTU Discovery
- MLD and MLD Snooping
- IPv6 static routing, RIPng, OSPFv3 and BGP4+
- Manual Tunnel, ISATAP Tunnel And 6-To-4 Tunnel
QoS:
- Traffic Classification Of Each Field Of L2/L3/L4 Protocol Headers
- CAR Traffic Control
- 802.1P/DSCP Priority Remark
- Multiple Queuing Algorithms Such As SP, WRR Or SP+WRR
- Tail-Drop, WRED
- Traffic Supervision And Traffic Shaping
Security Features:
- Identification And Filtration Of L2/L3/L4 Based ACL
- Defend Against DOS or TCP Attacks.
- Suppression Of Broadcast, Multicast And Unknown Unicast Packet.
- Port Isolation
- Port Security, Ip+Mac+Port Binding
- Dhcp Snooping And Dhcp Option 82
- Ieee 802.1x Certification
- Radius And Bdtacacs+
- Urpf
- Command Line Authority Control Based On User Levels
Reliability:
- Power 1+1 Redundancy
- Power And Fan Hot Swap
- Static Lacp Link Aggregation And Cross Service Card Link Aggregation
- Ring Network Protection Including Eaps
- Vrrp And Hsrp
- Ethernet Oam 802.3ah/802.1ag/Itu-Y.1731
- Gr For Ospf And Bgp
- Bfd For Ospf And Bgp
- Issu
Management and Maintenance:
- Console, Telnet and SSH
- SNMP v1/v2/v3
- Upload And Download Of TFTP Files
- Remote Network Monitoring (RMON)
- Statistics Analysis Of Sflow, Netflow
- Terrabit OS
Energy saving: IEEE 802.3az green Efficient Ethernet
Environment:
- Operating temperature/humidity: 0oC -50oC , 10%-90% (non-condensing)
- Storage temperature/ humidity: -20oC -70oC, 5%-95% (non-condensing)
Power supply:
- AC: 100V-240V, 50Hz±10%
- DC: -36V~-72V
Dimensions mm (W×D×H): 442.5×404×44, 1U
